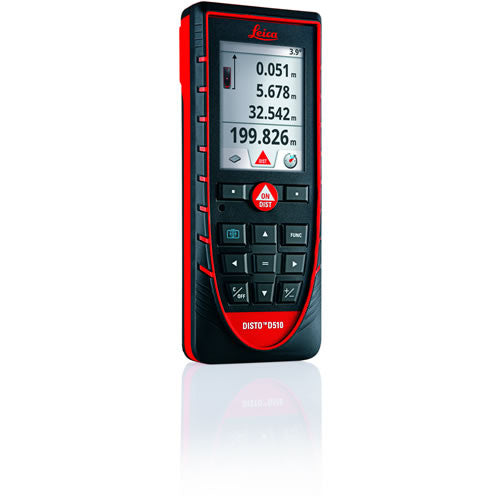

Leica DISTO™ D510
$0.00
The Leica DISTO™ D510 stands for easy and effortless outdoor distance measurement. The unique combination of digital Pointfinder and 360° tilt sensor allows measurements which are not possible with conventional distance meters. In addition, with Bluetooth® Smart and attractive free apps, you are prepared for the future.
- Pointfinder with 4x zoom
- IP 65 water jet protection and dust-tight
- 360° tilt sensor
- Smart Horizontal Mode™
- Height tracking
- Bluetooth® Smart
- Free App – Leica DISTO™ sketch
Specifications & Packing
Packing:
Art. No. 792 290
Art. No. 792 319 JP-Version
- Leica DISTO™ D510 laser distance meter
- Holster
- Hand loop
- Batteries
Technical Data |
|
Typical measuring accuracy |
±1mm |
Range |
Up to 200m |
Measuring units |
M, ft, in, yd |
Power Range Technology |
|
Distance in m
|
10, 50, 100m 6, 30, 60mm |
Tilt sensor measuring range |
360° |
Free App |
|
Data Interface* |
Bluetooth® Smart |
Measurements per set of batteries |
Up to 5000** |
Multifunctional end-piece |
Automatic recognition |
Batteries |
Type AAA 2 x 1.5V |
Tripod thread |
|
Protection class |
IP 65 - water jet protection and dust-tight |
Dimensions |
143 x 58 x 29mm |
Weight with batteries |
198g |
*System requirements and other details can be found at http://www.disto.com/
** Reduced in Bluetooth® mode
Functions |
|
Min/max measurement |
|
Area / volume measurement |
|
Triangle / room angle function |
|
Painter function |
|
Trapezium measurements |
|
Pythagoras functions |
2 points and 3 points |
Inclination tracking |
|
Smart Horizontal Mode™ |
|
Sloped object measurement |
|
Height tracking |
|
Height profile measurements |
|
Stake-out function |
a/b |
Subsctraction / addition |
|
Supported devices |
Wireless Connectivity |
iPhone 5 |
Bluetooth® 4.0 |
iPhone 4S |
Bluetooth® 4.0 |
iPad mini |
Bluetooth® 4.0 |
iPad 3 |
Bluetooth® 4.0 |
iPad 4 |
Bluetooth® 4.0 |
iPod touch (5th Generation) |
Bluetooth® 4.0 |
Smart phones and tablets with Android 4.3 or higher |
Bluetooth® 4.0 |
User Manual
- Leica DISTO™ D510 - Manual
- Leica DISTO™ D510 - Quickstart
- DISTO™ + Bluetooth® – getting started on Android
- DISTO™ + Bluetooth® – getting started on iOS
- DISTO™ + Bluetooth® – getting started on Windows 8
Video
